Electric Sightseeing Bus 11S 5000W from Dezhou Kunmiao

Electric Sightseeing Bus 11S 5000W from Dezhou Kunmiao

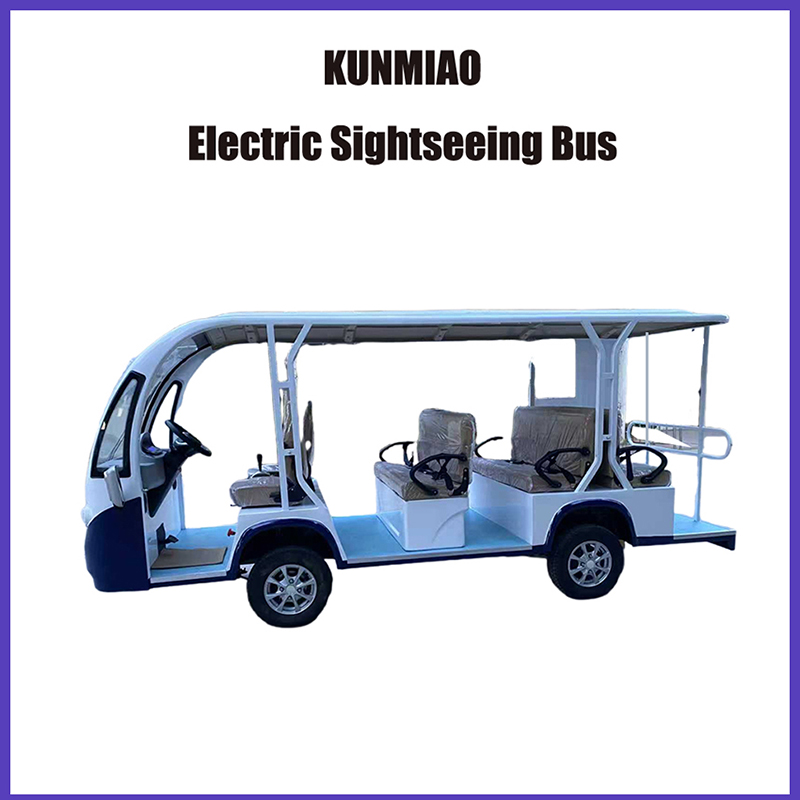

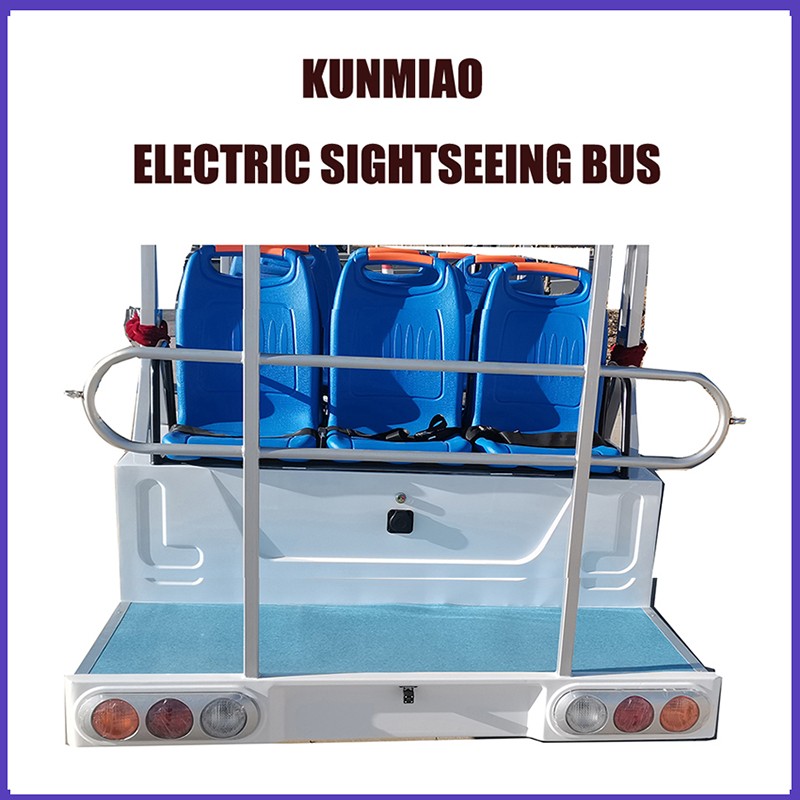

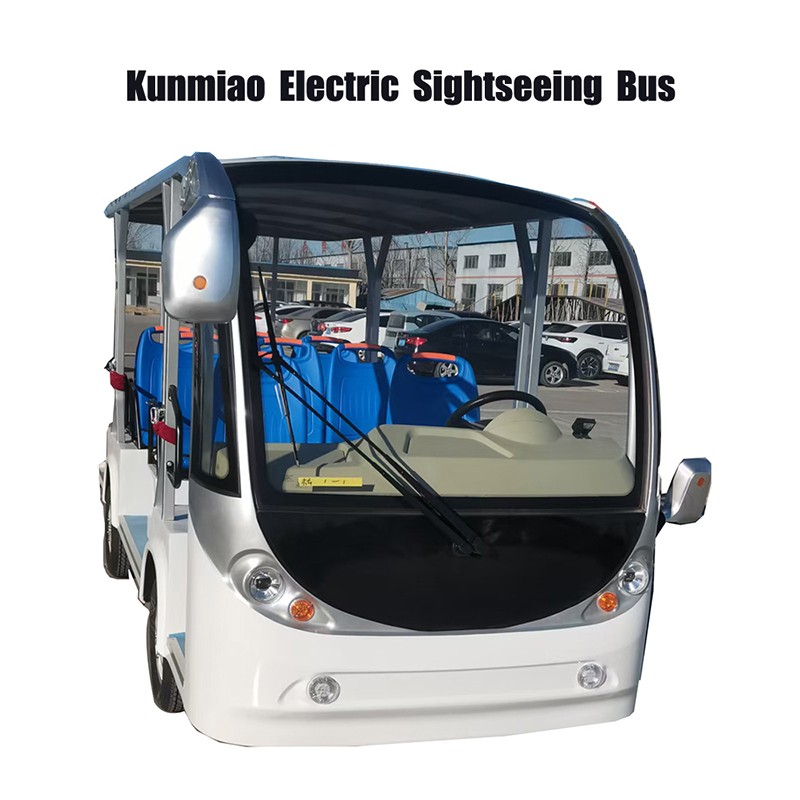

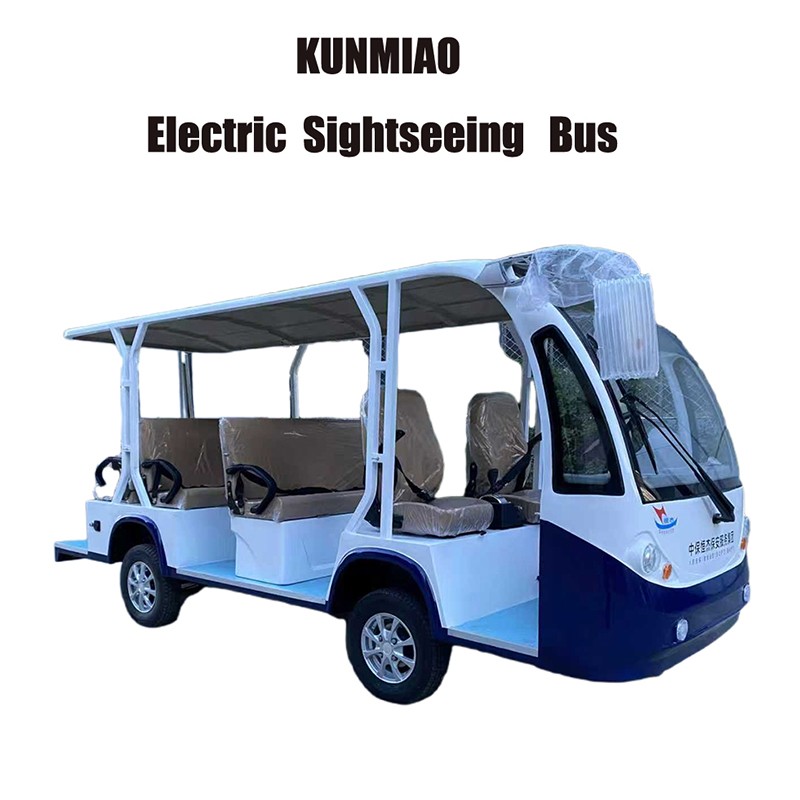

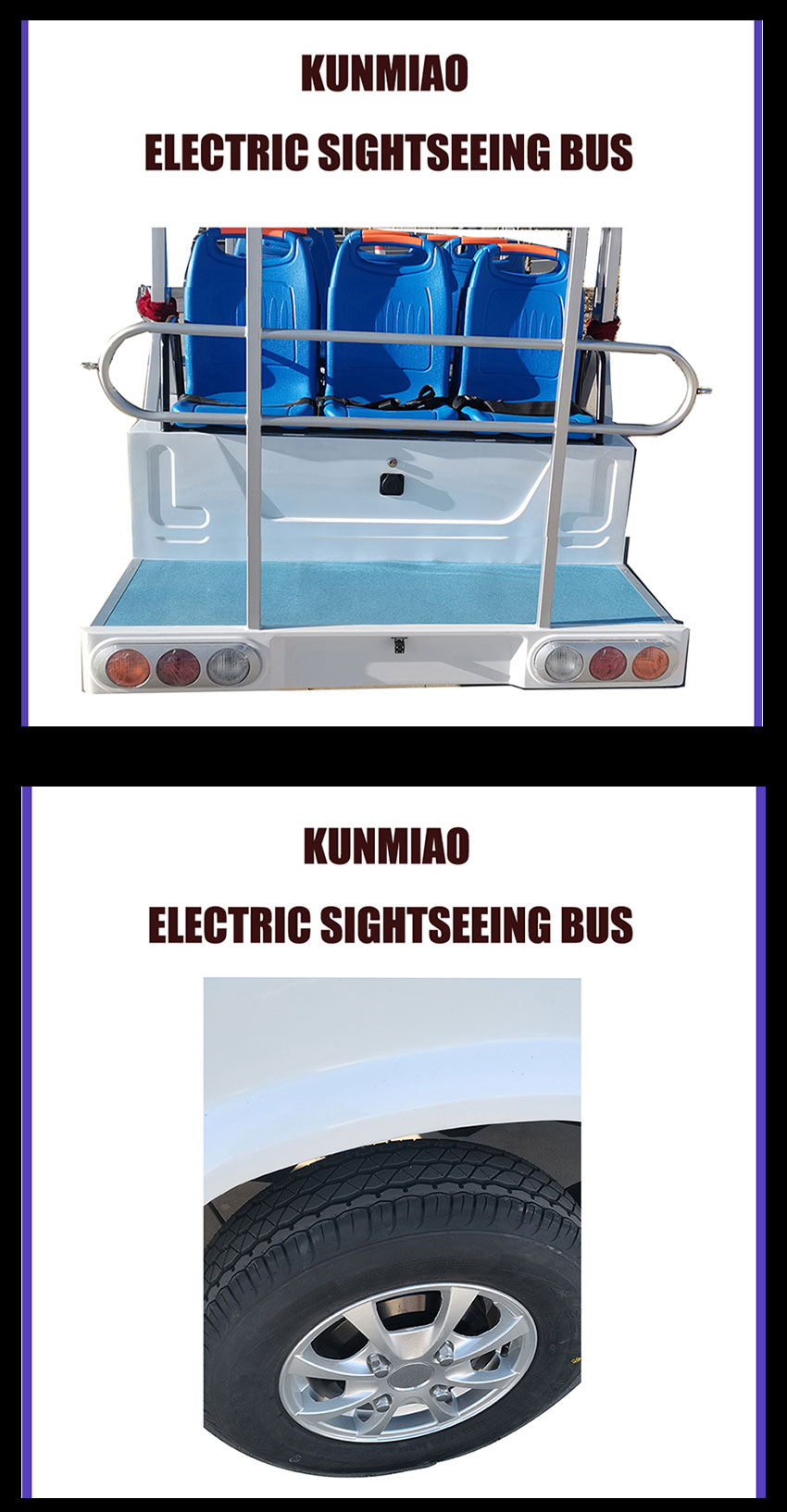

Kunmiao Electric Sightseeing Bus
5000W Motor Top Speed 30KMPH
Range per full Charge : 80-120KM
Lead Acid Battery 72V 100Ah
Open Model , without Doors , 11 Seat
Climb Ability : 25°

FOB TIANJIN USD4100.00

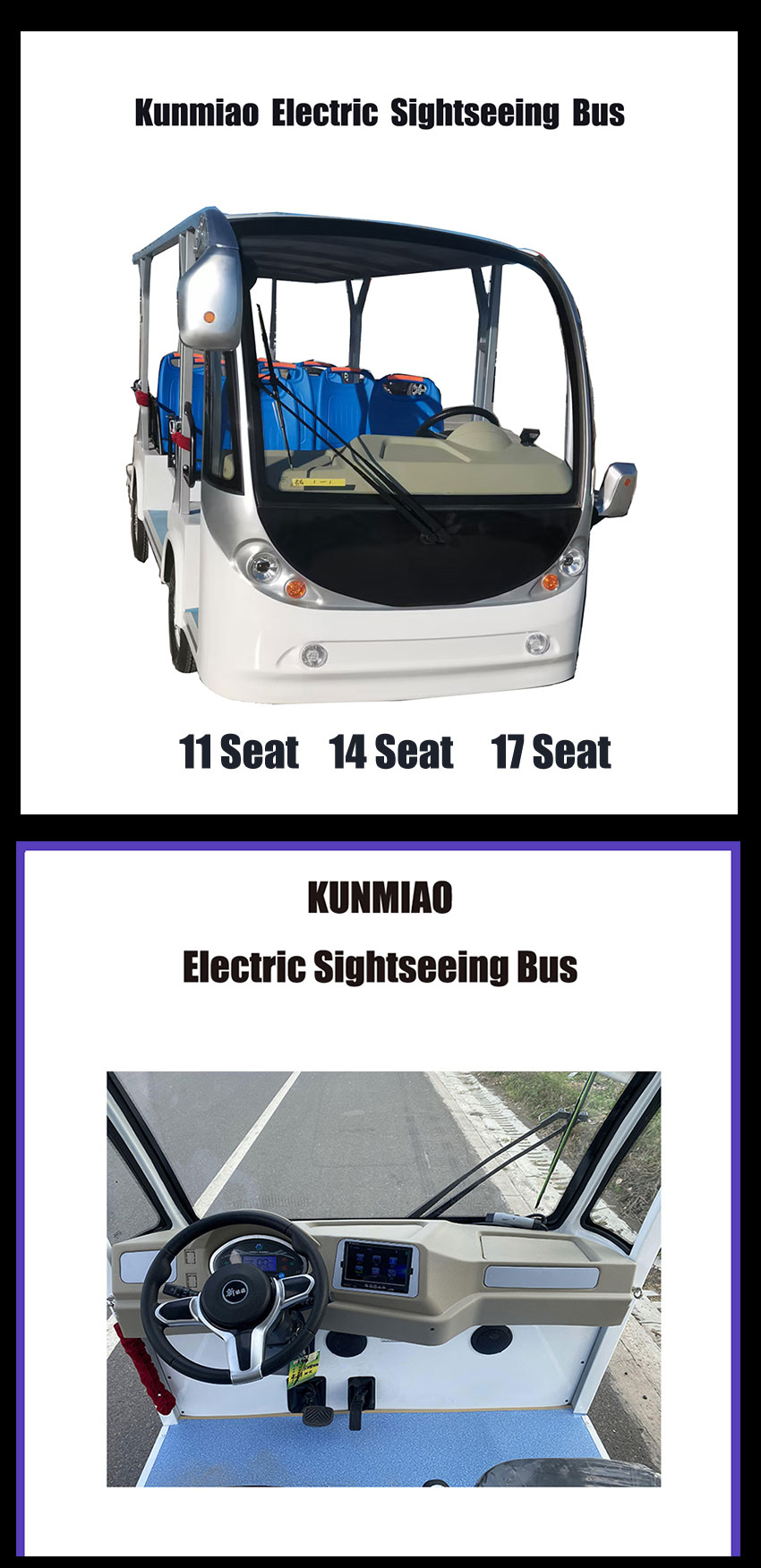

11 Seat Electric Bus


Electric Bus 11 Seat for Sightseeing and Short Distance Transport Passengers

Model	4-Row 11S Sightseeing Bus	Carload	1200kg
*LengthWidthHeight (mm*	*433015602030*	Curb weight	850kg
Wheel base （mm）	2190	Maximum speed	≤30km/h
Front and rear wheelbase (mm	1410/1435	Driving slope	≥25 °
Braking length	≤4.0m	Endurance mileage	100km
Electronic control system	The high-performance intelligent controller features American-imported chips with AC control and smart fault alarm functions, simplifying troubleshooting. It includes over-temperature protection circuitry for smoother and safer startup.
Cell	5 Only 12V100AH (high-capacity lead-acid maintenance-free battery)
Any power-generating or power-drivemachine	72V4.0KW AC motor. Features superior traction performance, strong overload capacity, and long service life
Charging input voltage	220V50HZ	Charging interval	6-8 hours (discharge rate of 80%)
Charging generator	High-frequency pulse computer-controlled intelligent charger that automatically stops charging after full charge, effectively extending battery life

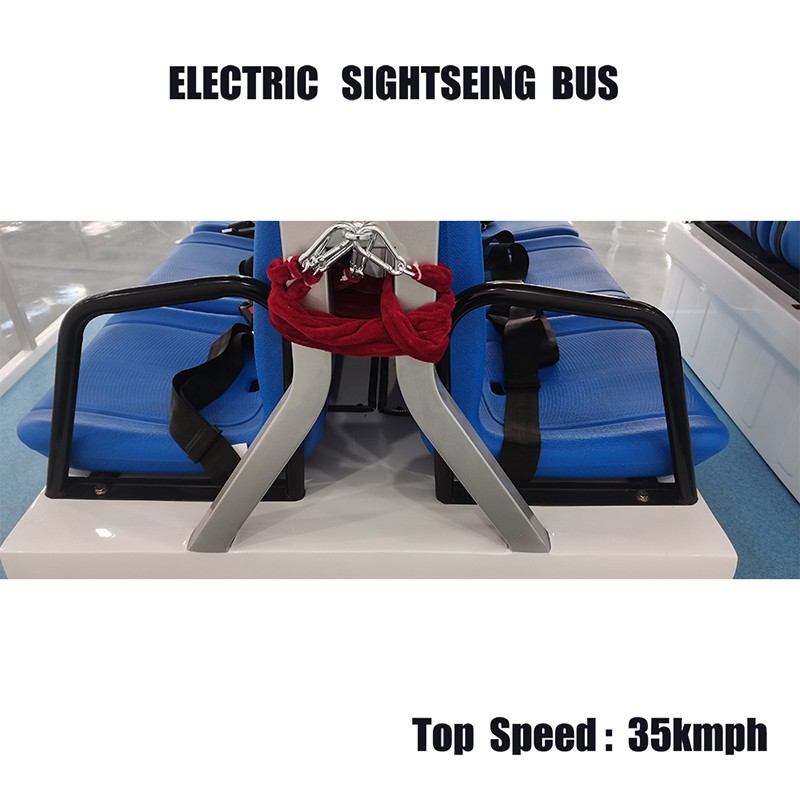

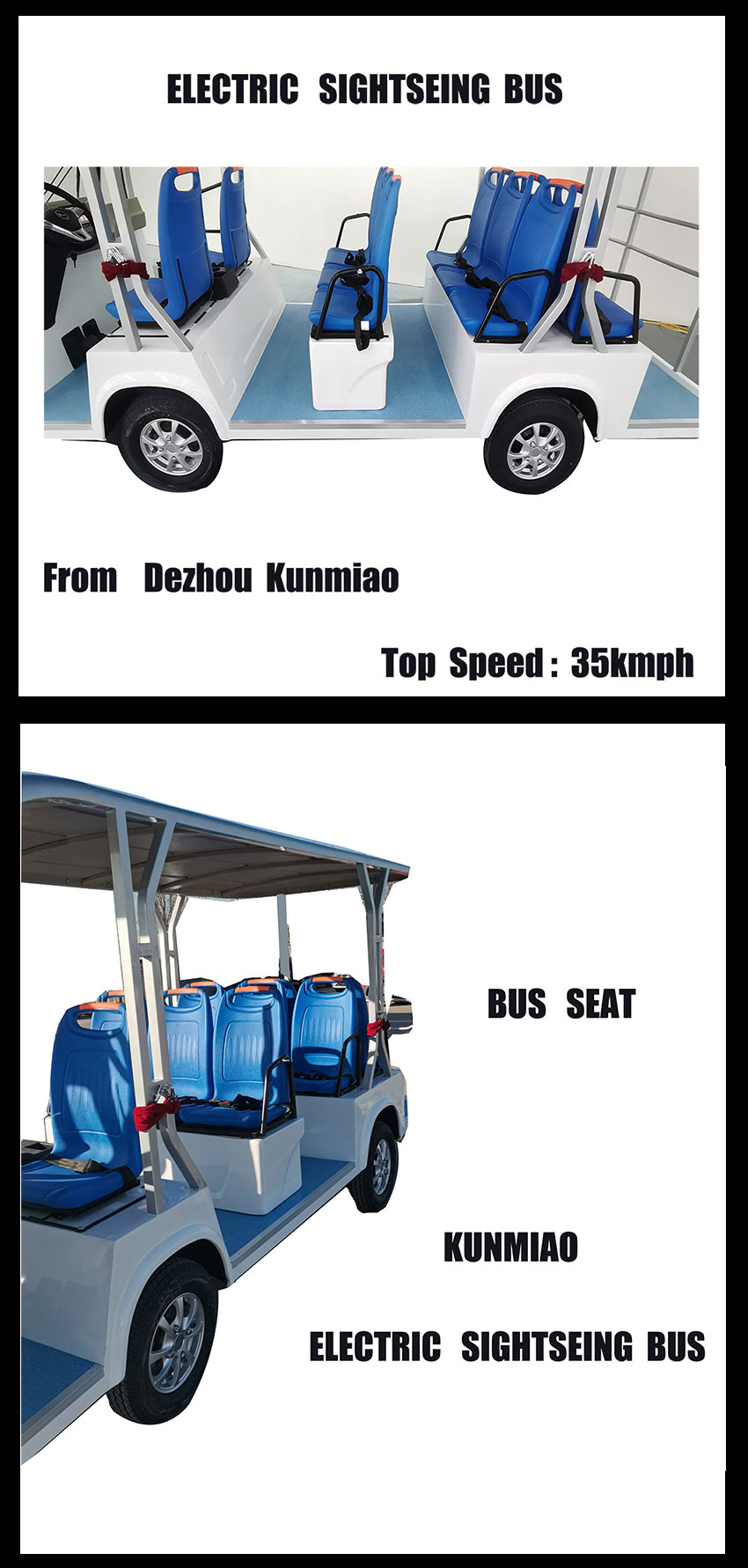

Seat	and rear three-seater bench seats (premium waterproof leather with armrests), available in Front seats (1+1 premium waterproof leather with armrests, adjustable to corners, front/rear) beige, blue, or black.
Top	Constructed with steel structures compliant with national standards, the entire assembly undergoes acid pickling and phosphating treatment for corrosion resistance, ensuring exceptional durability.

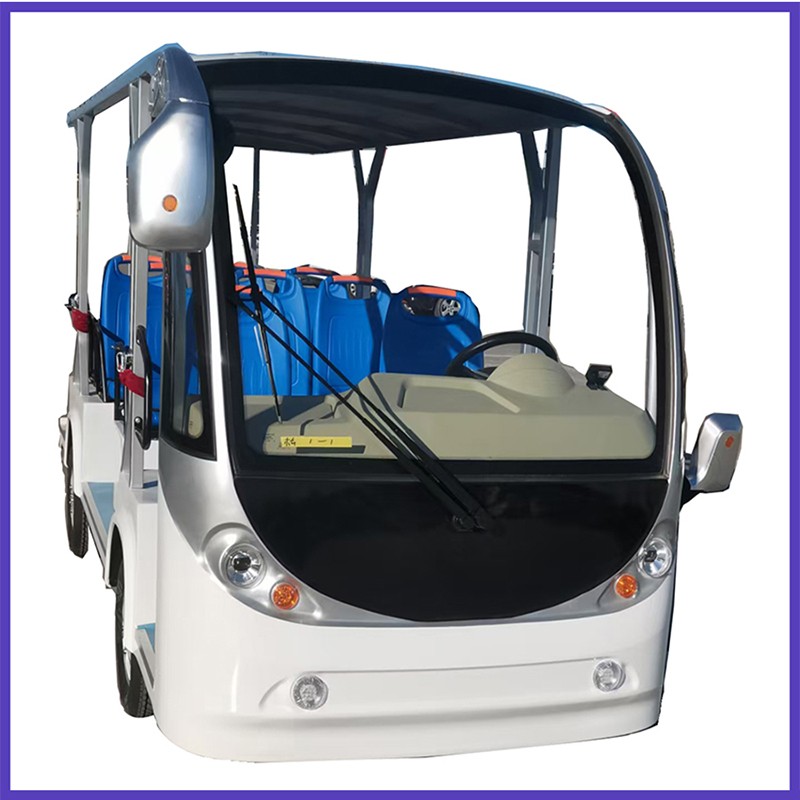

Front windshield	Automotive tempered glass with wipers
Body of car	Forged through a single stamping process, it is robust and durable, with easy repair after impact..
